Vacuum Sealing Flange with Seven 1/4" Feedthroughs for 100mm O.D. Tube - EQ-FL100-7FTR

0.0/5 rating (0 votes)

Description

This is a single-side flange for 100mm O.D. tube with seven 1/4" tube fittings. It provides multiple feedthroughs for various gasses delivery and thermocouple insert. Specifications:

Features
  • SS304 Stainless steel flange with double high-temperature silicon O-rings
  • Hex screw tube sealing with no welding or gluing needed.
  • Ideal for any type of tubing: ceramic, glass, quartz, and steel pipes.
  • Multiple feed-throughs for various gasses delivery and thermocouple insert.
Structure
  • Flange for 100mm O.D. tube

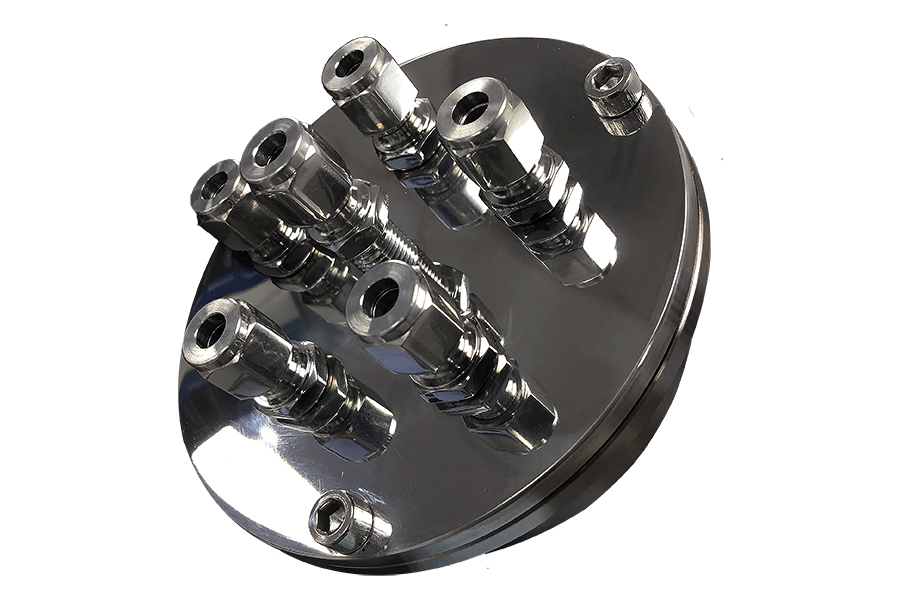

  • Seven 1/4" feedthrough with ferrule tube fitting (The following pictures show an 80mm version, which has six feedthroughs)
  •
 Optional
  • You may order right side single flange by click picture below
Vacuum Level  10-4 torr (molecular pump) and 10-2 torr(mechanical pump)
Dimension
  • Flange dimension illustration
Warning
  • A refractory tube block is required in front of the flange to avoid silicone O-ring melting.
  • Please consider purchasing our ceramic tube block.
  • Please do not over tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs.
  • For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gasses with our flange assemblies. Please contact us with any concerns.
