F10-RT System

F10-RT System

0.0/5 rating (0 votes)


Measure Reflectance and Transmittance Simultaneously

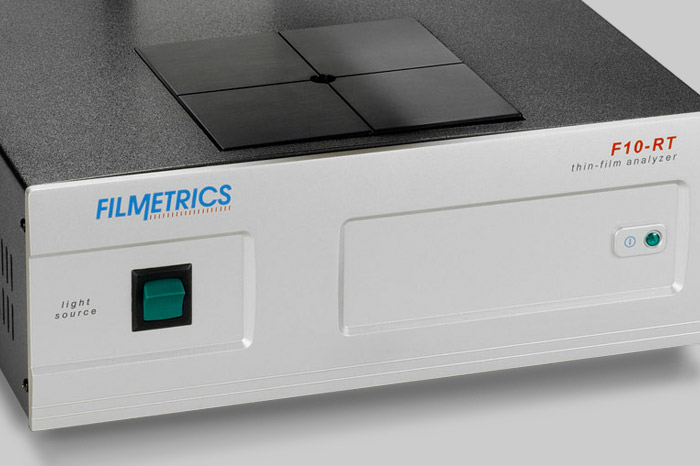

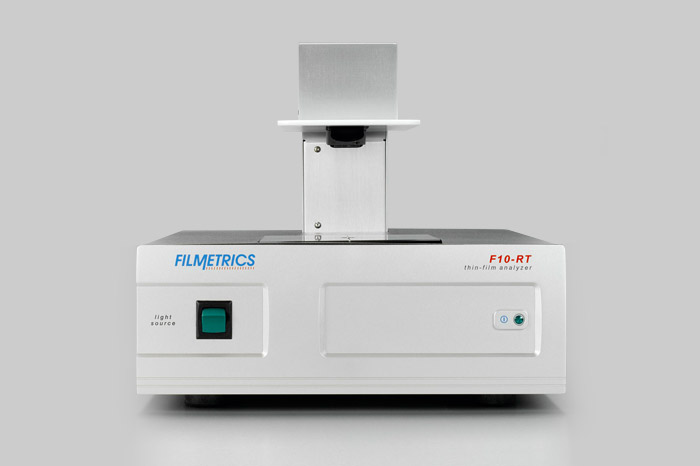

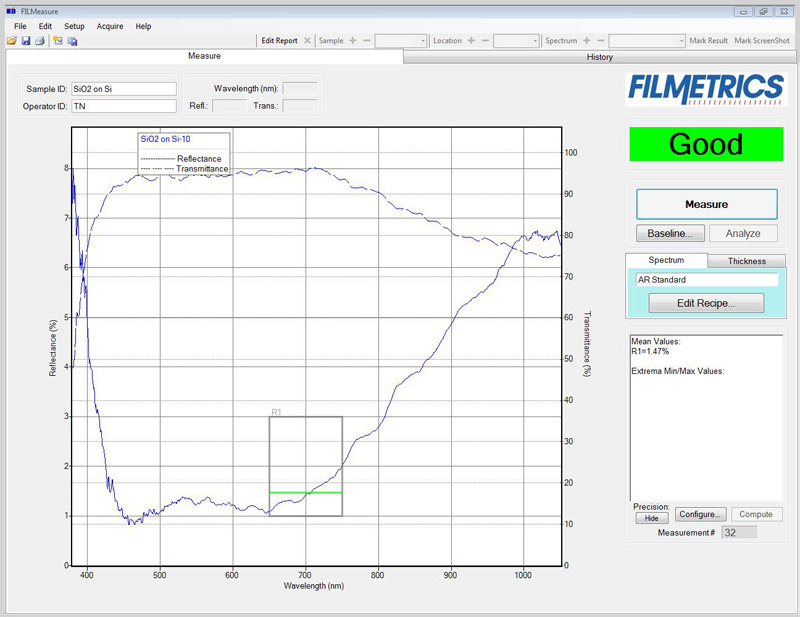

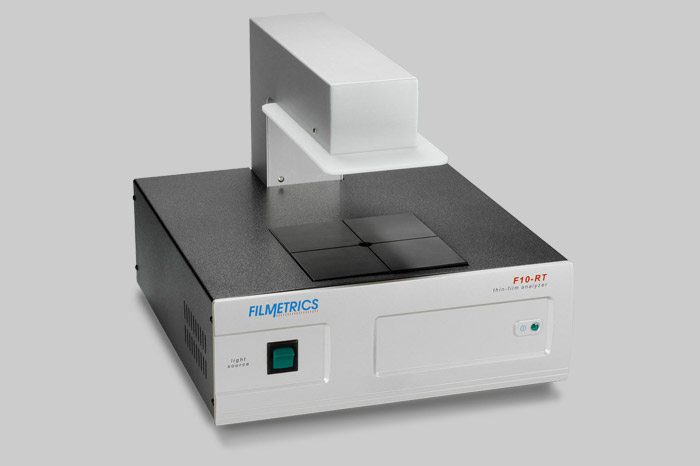

The F10-RT reflectometer captures reflectance and transmittance spectra with a single mouse-click. For a fraction of the price of legacy reflectometry systems, users can measure min/max and color.

f10rt detail largef10rt main image largef10rt straightshot largescreenshot f10 rt med large

Optional thickness and index measurement modules provide access to all of the analytical power of the Filmetrics® F20. Data can be exported and printed easily.


Model Specifications

Model Thickness Range* Wavelength Range
F10-RT 15nm - 70µm** 380-1050nm
F10-RT-UV 1nm - 40µm** 190-1100nm
F10-RT-UVX 1nm - 150µm** 190-1700nm
F10-RT-NIR 100nm - 150µm** 950-1700nm
F10-RT-EXR 15nm - 150µm** 190-1700nm
*film stack dependent
**thickness & index solving are optional
